mmWave Band Pass Filter

From 40GHz to 46GHz

Brand :ENRICHTEK

P/N :MBP-40E-46E

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this millimeter wave comb band pass filter(also called mm wave band pass filter)MBP-40E-46E is from 40GHz to 46GHz with a 6GHz bandwidth, the maximum handing power is 5 Watt(CW)

With a 50 Ohm impedance, the VSWR of this millimeter wave bandpass filter MBP-40E-46E is less than 1.5.

The insertion loss of this millimeter wave band pass filter MBP-40E-46E is less than 1.7dB .

The rejection is larger than 45dB at 34.5GHz and larger than 45dB at 50GHz.

The millimeter wave band pass filter MBP-40E-46E has been tested and proven as all our standard millimeter wave filter products.

With high performance, good stability and consistency, RF filters/millimeter wave filters from ENRICHTEK are wildly used in education, industry and aviation.

Millimeter wave band pass filters from ENRICHTEK are customizable, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	43GHz
Pass Band Frequency	40～46GHz
Pass Band Insertion Loss	≤1.7dB
Pass Band VSWR	≤1.5:1
Stop Band Attenuation	≥45dB @ 34.5GHz ≥45dB @ 50GHz
Impedance	50 ohms
Power	≤5W
Surface Finish	Black Paint
Net weight	0.0418 KG

Mechanical Specifications

Dimensions	40168mm
Connectors	2.4mm-Female

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95 ºC

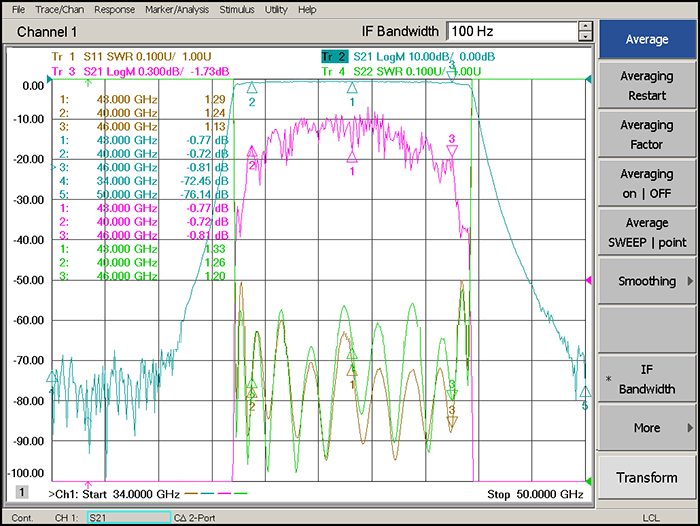

Typical Performance

40-46GHz Comb Band Pass Filter.png

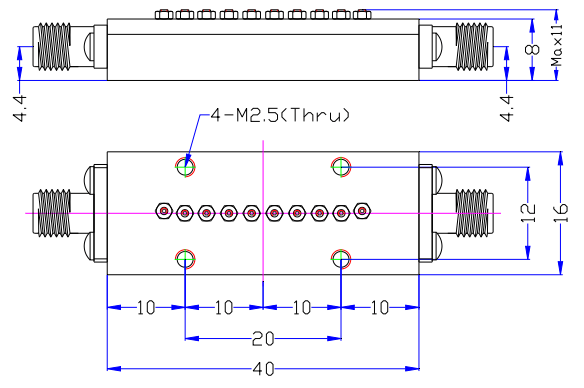

Outline Drawing (unit: mm)

40~46GHz Millimeter Wave Filter9.png

ature
