4 Way Power Divider

From 18GHz to 40GHz

Brand :ENRICHTEK

P/N     :EPD4-18E-40E

MOQ  :1

Millimeter wave power divider (also known as mm wave power divider/ mm wave power splitter) is an important device in microwave and millimeter wave systems.
The design, process and test of millimeter wave power divider are more complicated than general RF power divider. ENRICHTEK combine innovative engineering solutions, extensive simulation design experience, precision machining methods and rigorous testing standards to provide this 4 way broadband millimeter wave power divider EPD4-18E-40E. The frequency of this 4 way millimeter wave power divider EPD4-18E-40E is from 18GHz to 40GHz with a 22GHz bandwidth. The maximum forward power is 10 watt, and the maximum reversed input power is 1 watt.
This 4 way millimeter wave power divider EPD4-18E-40E has a typical insertion loss of 1.5dB, the maximum VSWR is 1.5, the isolation is larger than 16dB.
The frequency of our millimeter wave power dividers are up to 67GHz, they are widely used in communication, radar navigation, electronic countermeasures.
Our millimeter wave power divider is customizable, such as changing the frequency, mechanical structure, or changing the electrical parameters.

Electrical Specifications

Parameters

Typical Value

Way

4

Frequency Range

18 ~ 40GHz

Insertion Loss

≤1.5dB (Does not contain theory loss 6.0dB)

VSWR

Input: ≤1.5:1  ;  Output: ≤1.5:1

Isolation

≥16dB

Amplitude Balance

≤ ±0.4dB

Phase Balance

≤ ±6°

Impedance

50 Ohms

Power

Forward: 10W Max.  ;  Reverse: 1.0W Max

Material

Housing: 6061 Aluminum alloy

Connectors: Stainless Steel

Other screw: Stainless Steel

Mechanical Specifications

Dimensions

52.3*38.1*10mm

Connectors

2.92mm(K)-Female

Surface Finish

Painted Black

Net weight

0.065 KG

Environmental Specifications

Operating Temperature

-40 to +80ºC

Storage Temperature

-55 to +95ºC

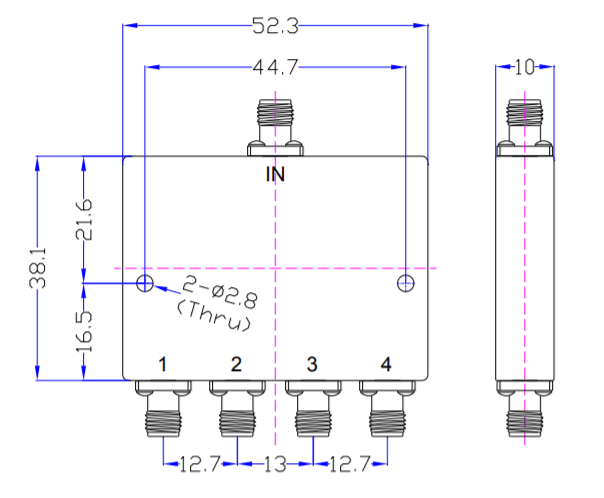

Outline Drawing (unit: mm)

18~40GHz 4 Way Millimeter Wave Power Divider9.png
