Broadband Horn Antenna

Brand :ENRICHTEK

P/N :ATBDH Series

MOQ :1

Broadband dual ridge horn antenna (also known as broadband horn antenna) is an antenna used in EMI detection, orientation, antenna gain measurement, pattern measurement and other application fields.

Our ATBDH series broadband horn antennas are linear polarization and range from 0.2 GHz to 67GHz, they have the characteristics of high gain, bandwidth greater than ten times, low VSWR, light appearance, etc., which provide an efficient method for broadband measurement.

Our company can customize broadband horn antenna according to customer's special requirements, especially broadband horn antennas with special requirements for gain.

Typical Pattern(ATBDH10180)

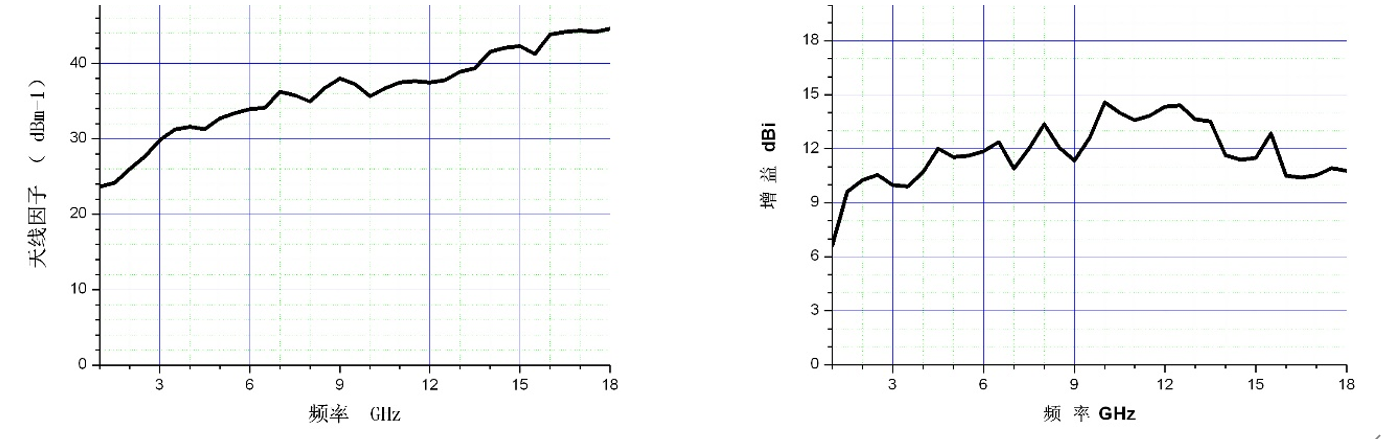

Typical Antenna Factor and Gain(ATBDH10180)

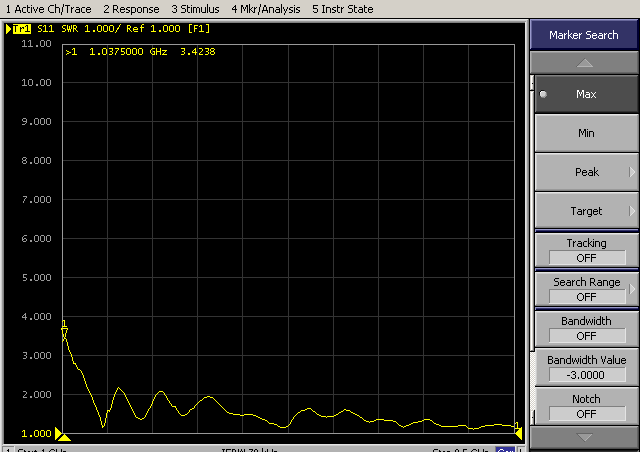

Typical VSWR(P/N: ATBDH10180)

Broadband Horn Antenna Products List

Note: antenna is customizable according to user requirements

P/N	Freq. (GHz)	VSWR (Typ.)	Gain (dBi)	Beamwidth(º)	Connector	Dimension (mm)
ATBDH220	0.2~2	2:1	5~12	80~30	N	1000×970×690
ATBDH440	0.4~4	2:1	6~13	80~30	N	660×420×510
ATBDH530	0.5~3	2:1	6~12	80~30	N/SMA	500×350×440
ATBDH660	0.6~6	2:1	7~13	80~30	N/SMA	440×290×350
ATBDH880	0.8~8	2:1	6~13	80~30	N/SMA	294×194×262
ATBDH975	0.9~7.5	2:1	7~14.5	70~25	N/SMA	300×205×255
ATBDH1025	1~2.5	2:1	14.5~19	20~5	N/SMA	670×470×600
ATBDH1030	1~3	2:1	10~15	40~15	N/SMA	440×290×350
ATBDH1080A	1~8	2.5:1	-5~13	200~30	N/SMA	90×82×150
ATBDH1080B	1~8	2:1	6~13	80~30	N/SMA	241×160×204
ATBDH10125	1~12.5	2:1	6~14.5	80~30	N/SMA	241×160×204
ATBDH10180	1~18	2.5:1	6~14.5	80~20	N/SMA	241×160×204
ATBDH2060A	2~6	2:1	9~13	50~15	N/SMA	241×160×204
ATBDH2060B	2~6	2:1	12~17	30~10	N/SMA	400×320×450
ATBDH2080	2~8	2:1	10~14	60~10	N/SMA	241×160×204
ATBDH20180A	2~18	2:1	8~13	80~20	N/SMA	180×140×170
ATBDH20180B	2~18	2:1	6~15	70~20	N/SMA	105×80×130
ATBDH20245	2~24.5	2:1	6~17	120~10	SMA	85×65×130
ATBDH20265	2~26.5	2:1	5~16	80~10	SMA	140×120×202
ATBDH75180	7.5~18	2:1	20~22	20~5	SMA	160×120×300
ATBDH80180	8~18	2:1	10~20	70~10	SMA	90×70×140
ATBDH18400	18~40	2:1	14~19	40~10	K	34×28×75
