Band Pass Filter

From 615MHz to 765MHz

Brand :ENRICHTEK

P/N :EBP-E615-E765

MOQ :1

REQUEST QUOTE

ENRICHTEK's LC band pass filters are used to eliminate unwanted sidebands and remove spurious interference and noise.

The frequency of this LC band pass filter EBP-E615-E765 is from 615MHz to 765MHz, the maximum handing power is 1 Watt(CW)

With a 50 Ohm impedance, the VSWR of this LC band pass filter EBP-E615-E765 is less than 1.6.

The insertion loss of this LC band pass filter EBP-E615-E765 is less than 2.0dB and the passband ripple is less than 1.0dB.

The rejection at 5MHz-540MHz and 860MHz-3000MHzMHz is greater than 50dB.

The LC band pass filter EBP-E615-E765 has been tested and proven as all our standard RF filter products.

With wide operating temperature, high stability and consistency, ENRICHTEK’s RF filters are wildly used in education, industry, aviation.

ENRICHTEK provides band pass filter design service with good cost performance, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Description	Typical
Frequency	615-765MHz
Bandwidth	150MHz
Impedance	50Ohms
Passband Insertion Loss	2.0dB Max.
Passband Ripple	<1.0dB
VSWR	1.6:1 Max
Rejection 1	@5-540MHz>50dB
Rejection 2	@860-3000MHz>50dB
Power Handling	1(CW)

Mechanical Specifications

Dimensions	45x14x14(mm)
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-45 to +75ºC
Storage Temperature	-55 to +80 ºC

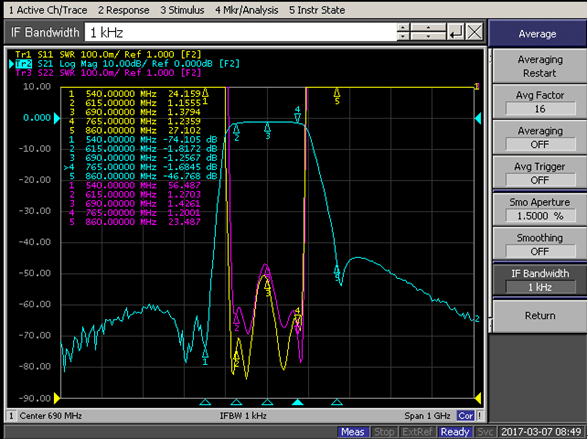

Typical Performance

615~765MHz Band Pass Filter.png

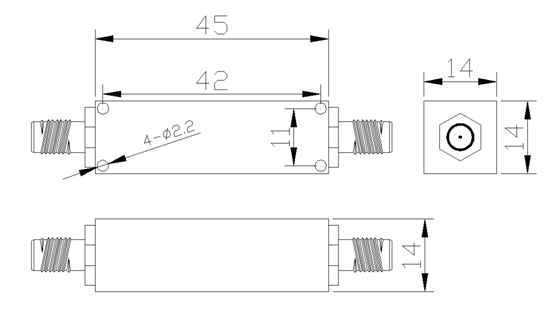

Outline Drawing (unit: mm)

615~765MHz Band Pass Filter9.png
