ENRICHTEK 's band pass filters are used to eliminate unwanted sidebands and remove spurious interference and noise.

The frequency of this LC band pass filter  EBP-E046-E056 is from 46MHz to 56MHz with a 10MHz bandwidth, the maximum handing power is 1 Watt(CW)

With a 50 Ohm impedance, the VSWR of this LC band pass filter  EBP-E046-E056 is less than 1.3.

The insertion loss of this LC band pass filter  EBP-E046-E056 is less than 3.0dB and the passband ripple is less than 1.0dB.

The rejection at 5MHz-40MHz and 60MHz-300MHz is greater than 50dB.

The LC band pass filter  EBP-E046-E056 has been tested and proven as all our standard RF filter products.

With wide operating temperature, high stability and consistency, ENRICHTEK’s RF filters are wildly used in education, industry, aviation.

ENRICHTEK provides band pass filter design service, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Mechanical Specifications

Environmental Specifications

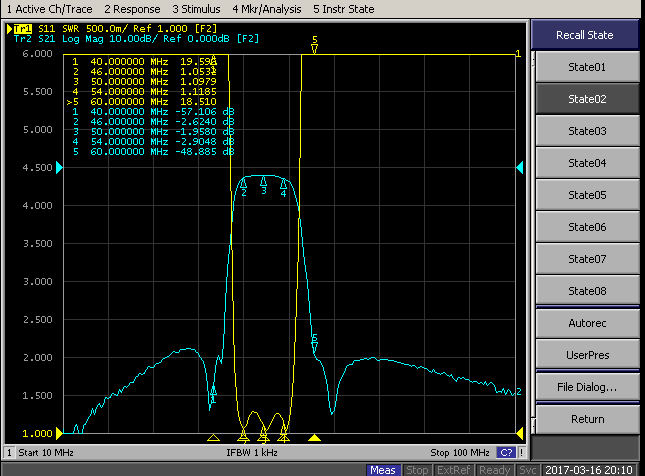

Typical Performance

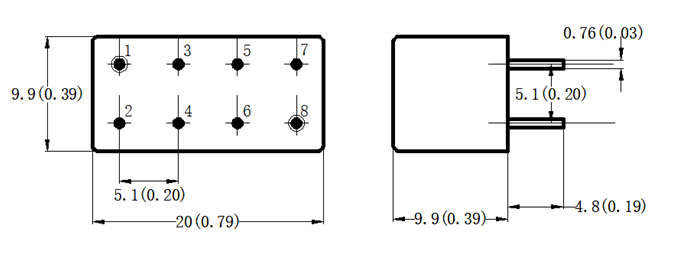

Outline Drawing (unit: mm)
