Band Pass Filter

From 8100MHz to 8800MHz

Brand :ENRICHTEK

P/N :EBP-8E1-8E8

MOQ :1

REQUEST QUOTE

Band pass filters are used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this cavity band pass filter EBP-8E1-8E8 from ENRICHTEK is from 8100MHz to 8800MHz with a 700MHz bandwidth, the maximum handing power is 5 Watt(CW)

With a 50 Ohm impedance, the pass band VSWR of this cavity band pass filter EBP-8E1-8E8 is less than 1.3, and the insertion loss is smaller than 1.5dB.

The stop band attenuation is larger than 20dB@DC~7950MHz/8950~15000MHz.

The cavity band pass filter EBP-8E1-8E8 has been tested and proven as all our standard RF filter products.

ENRICHTEK provides band pass filter design service, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	8450MHz
Pass Band Bandwidth	700MHz (8100～8800MHz)
Pass Band Insertion Loss	≤1.5dB
Pass Band VSWR	≤1.3:1
Stop Band Rejection	≥20dB @ DC～7950MHz ≥20dB @ 8950～15000MHz
Impedance	50 ohms
Power Handling	≤5W
Surface Finish	Black Paint
Net Weight	0.0728 KG

Mechanical Specifications

Dimensions	701610mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95 ºC

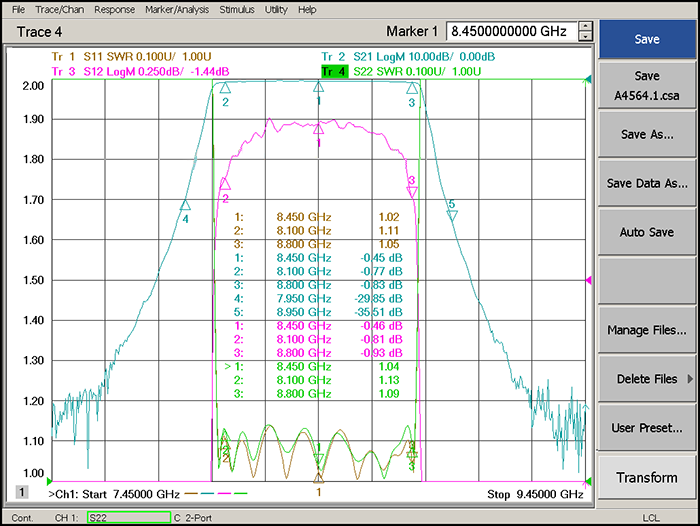

Typical Performance

8100-8800MHz Cavity Band Pass Filter 2.png

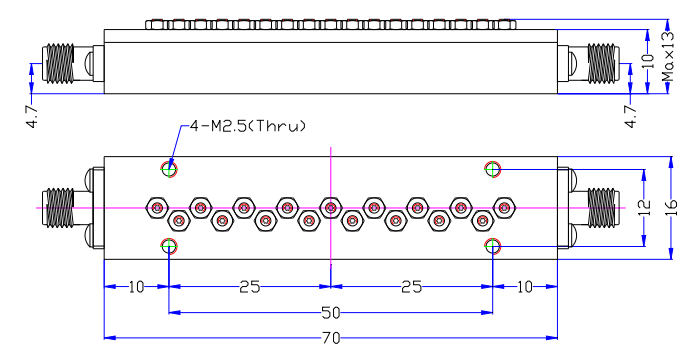

Outline Drawing (unit: mm)

8100~8800MHz Band Pass Filter9.png
