Band Pass Filter

From 1840MHz to 1860MHz

Brand :ENRICHTEK

P/N :EBP-1E84-1E86

MOQ :1

REQUEST QUOTE

ENRICHTEK 's band pass filters are used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this cavity band pass filter EBP-1E84-1E86 from ENRICHTEK is from 1840MHz to 1860MHz with a 20MHz bandwidth, the maximum handing power is 10 Watt(CW)

With a 50 Ohm impedance, the pass band VSWR of this cavity band pass filter EBP-1E84-1E86 is less than 1.3, and the insertion loss is smaller than 2.0dB.

The stop band attenuation is larger than 50dB@DC~1765MHz/1955~5000MHz.

The cavity band pass filter EBP-1E84-1E86 has been tested and proven as all our standard RF filter products.

ENRICHTEK provides band pass filter design service, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency (F0)	1850MHz
Pass Band Frequency	1840～1860MHz
Pass Band Insertion Loss	≤2.0dB
Pass Band VSWR	≤1.3:1
Stop Band Rejection	≥50dB @ DC～1765MHz ≥50dB @ 1955～5000MHz
Impedance	50 ohms
Power Handling	≤10W
Surface Finish	Black Paint
Net Weight	0.085 KG

Mechanical Specifications

Dimensions	802820mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-40 to +70ºC
Storage Temperature	-55 to +95 ºC

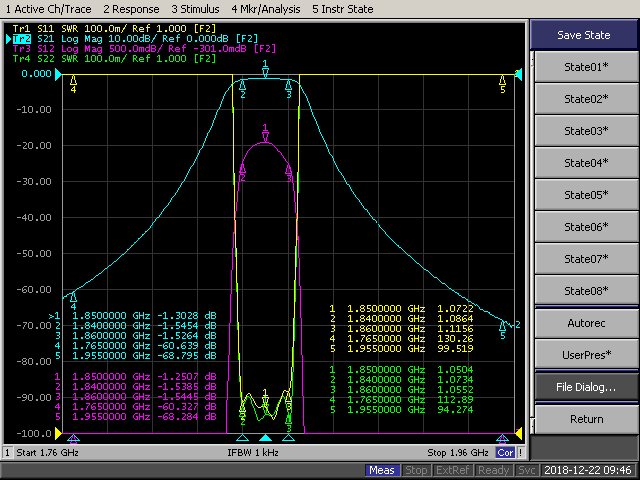

Typical Performance

1840-1860MHz Cavity Band Pass Filter 2.png

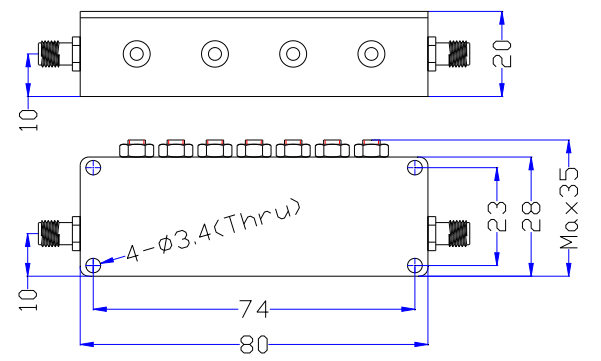

Outline Drawing (unit: mm)

1840~1860MHz Band Pass Filter9.png
