Band Pass Filter

From 4.19GHz to 4.21GHz

Brand :ENRICHTEK

P/N :EBP-4E19-4E21

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this cavity band pass filter EBP-4E19-4E21 is from 4.19GHz to 4.21Hz with a 20MHz bandwidth, the maximum handing power is 10 Watt(CW)

With a 50 Ohm impedance, the VSWR of this bandpass filter EBP-4E19-4E21 is less than 1.3.

The insertion loss of this band pass filter EBP-4E19-4E21 is less than 5.0dB and the passband ripple is less than 1.0dB.

The rejection is larger than 60dB@DC-4.1GHz and larger than 60dB@4.3-10GHz.

The band pass filter EBP-4E19-4E21 has been tested and proven as all our standard RF filter products.

With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.

ENRICHTEK provides band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency	4.2GHz
3.0dB Bandwidth	≤20MHz (4.19～4.21GHz)
Insertion Loss at F0	≤5.0dB @ 4.2GHz
VSWR at F0	≤1.3:1 @ 4.2GHz
Stop Band Rejection	≥60dB @ F0±100MHz (DC～4.1GHz、4.3～10GHz)
Impedance	50 ohms
Power Handling	≤10W
Surface Finish	Black Paint
Net Weight	0.065 KG

Mechanical Specifications

Dimensions	611414mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	+15 to +30ºC
Storage Temperature	-55 to +95 ºC

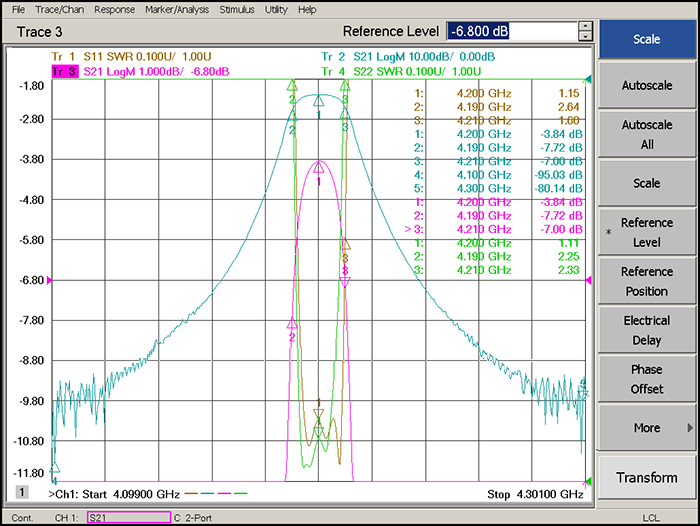

Typical Performance

4.19-4.21GHz Dot Frequency Cavity Filter.png

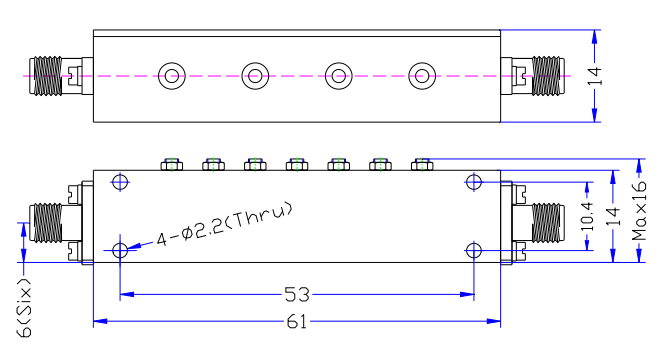

Outline Drawing (unit: mm)

4.19~4.21GHz Band Pass Filter9.png
