Band Pass Filter

From 2.11GHz to 2.17GHz

Brand :ENRICHTEK

P/N :EBP-2E11-2E17

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this cavity band pass filter EBP-2E11-2E17 is from 2.11GHz to 2.17GHz with a 60MHz bandwidth, the maximum handing power is 5 Watt(CW)

With a 50 Ohm impedance, the VSWR of this band pass filter EBP-2E11-2E17 is less than 1.3.

The insertion loss of this band pass filter EBP-2E11-2E17 is less than 1.5dB .

The rejection is larger than 50dB@DC-1.89GHz and larger than 50dB@2.39-5.0GHz.

The band pass filter EBP-2E11-2E17 has been tested and proven as all our standard RF filter products.

With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.

ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	2.14GHz
Pass Band Frequency	2.11 ~ 2.17GHz
Pass Band Insertion Loss	≤1.5dB
Pass Band VSWR	≤1.3:1
Stop Band Rejection	≥50dB @ DC ~ 1.89GHz	≥50dB @ 2.39 ~ 5.0GHz
Impedance	50 Ohms
Power Handling	5W CW
Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	702814mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net Weight	0.05 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

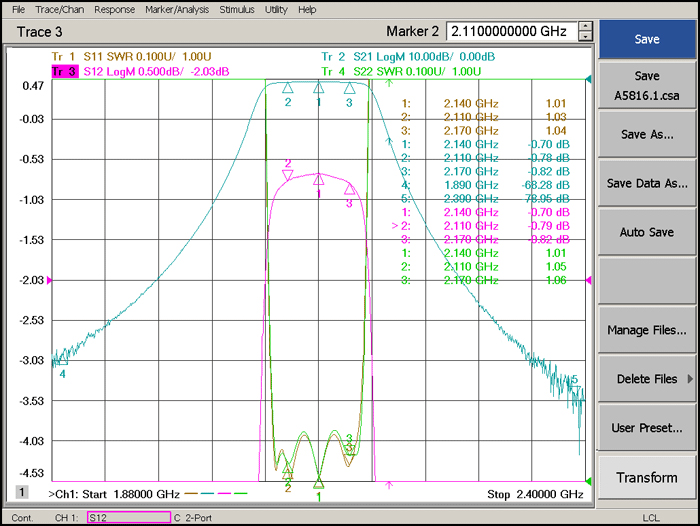

Typical Performance

2.11-2.17GHz Cavity Band Pass Filter.jpg

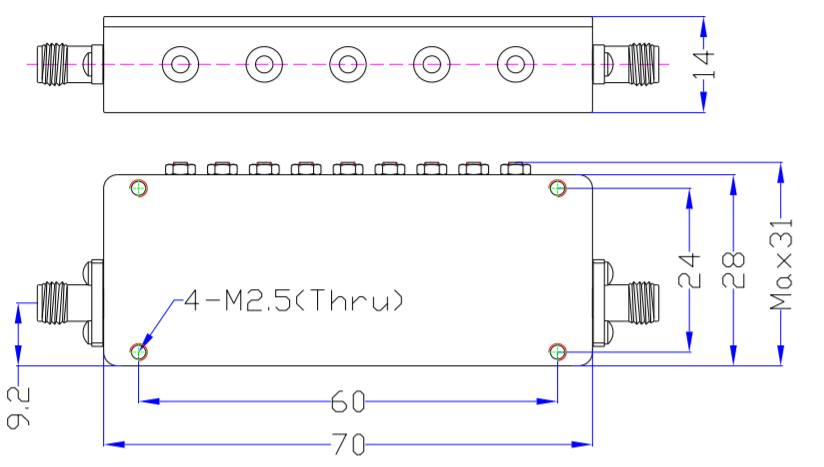

Outline Drawing (unit: mm)

2.11~2.17GHz Band Pass Filter9.png
