High Pass Filter

From 250MHz to 2000MHz

Brand :ENRICHTEK

P/N :EHP-E25

MOQ :1

REQUEST QUOTE

ENRICHTEK 's high pass filters are wildly used in radio frequency devices. They can reject signals below designed, and pass signals above the designed frequency.

The frequency of this LC high pass filter EHP-E25 is from 250MHz to 2000 MHz, the maximum handing power is 1 Watt(CW).With a 50 Ohm impedance, the passband ripple is less than 1.8dB, and the VSWR is less than 1.7.The rejection of this LC high pass filter EHP-E25 is greater than 45dB at DC to 170MHz.The LC high pass filter EHP-E25 from ENRICHTEK has been proven and tested as all our standard RF filter products.

ENRICHTEK provides high pass filter design service to meet your requirements, such as changing the cutoff frequency, connectors, mechanical structure, or changing the electrical parameters

Electrical Specifications

Description	Typical
Frequency	250-2000MHz
Bandwidth	1750MHz
Impedance	50Ohms
Passband Insertion Loss	3.0 Max. 250M-1000M<1
Passband Ripple	<1.8
VSWR	1.7:1 Max 250M-1000M<1.5
Rejection	≥45dB@DC-170MHz
Power Handling	1(CW)

Mechanical Specifications

Dimensions	40x12x10(mm)
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-45 to +65ºC
Storage Temperature	-55 to +80 ºC

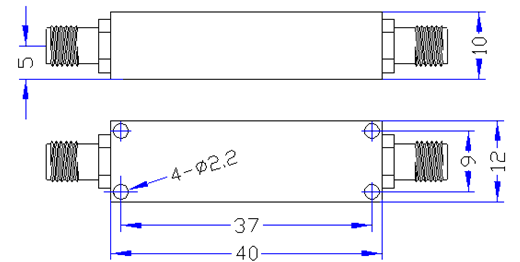

Outline Drawing (unit: mm)

250~2000MHz High Pass Filter9.png
