High Pass Filter

From 650MHz to 2400MHz

Brand :ENRICHTEK

P/N :EHP-E65

MOQ :1

REQUEST QUOTE

High pass filters are wildly used in radio frequency devices. They can reject signals below designed, and pass signals above the designed frequency.

The frequency of this LC high pass filter EHP-E65 is from 650MHz to 2400 MHz, the maximum handing power is 1 Watt(CW).With a 50 Ohm impedance, the VSWR is less than 1.5, and the passband ripple is less than 1.8dB.The rejection of this LC high pass filter EHP-E65 is greater than 45dB at DC to 500MHz.The high pass filter EHP-E65 from ENRICHTEK has been proven and tested as all our standard RF filter products.

ENRICHTEK provides high pass filter design service to meet your requirements, such as changing the cutoff frequency, connectors, mechanical structure, or changing the electrical parameters

Electrical Specifications

Description	Typical
Frequency	650-2400MHz
Bandwidth	1750MHz
Impedance	50Ohms
Passband Insertion Loss	3.0 Max. 650M-1200M<1.8
Passband Ripple	<1.8dB
VSWR	1.7:1 Max 650M-1200M<1.5
Rejection	≥45dB@DC-500MHz
Power Handling	1(CW)

Mechanical Specifications

Dimensions	40x12x10(mm)
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-45 to +65ºC
Storage Temperature	-55 to +80 ºC

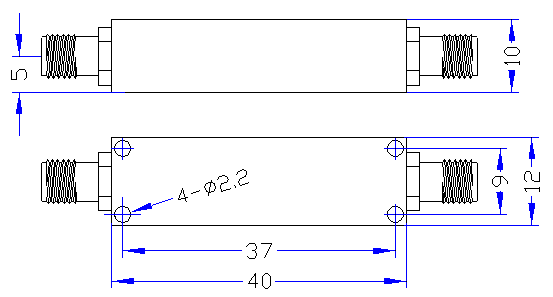

Outline Drawing (unit: mm)

650~2400MHz High Pass Filter9.png
