High Pass Filter

From 7.0GHz to 26GHz

Brand :ENRICHTEK

P/N :EHP-7E-26E

MOQ :1

REQUEST QUOTE

ENRICHTEK 's high pass filters are wildly used in radio frequency devices. They can reject signals below designed, and pass signals above the designed frequency.

The operating frequency of this suspended stripline high pass filter EHP-7E-26E is from 7.0GHz to 26 GHz, the maximum handing power is 15 Watt(CW).With a 50 Ohm impedance, the VSWR of this suspended stripline high pass filter is less than 1.5, the passband ripple is less than 1.0dB, and the maximum insertion loss of this high pass filter EHP-7E-26E is 1.0dB @ 7.3~26GHz. The rejection of this suspended stripline high pass filter EHP-7E-26E is larger than 50dB@DC-5.85GHz. The suspended stripline high pass filter EHP-7E-26E from ENRICHTEK has been proven and tested as all our standard RF filter products.

ENRICHTEK provides high pass filter design service to meet customer’s requirements, such as changing the cutoff frequency, connectors, mechanical structure, or changing the electrical parameters.

Electrical Specifications

Parameters	Typical Value
Cut Off Frequency	7.0GHz
Pass Band Frequency	7.0～26GHz
Pass Band Insertion Loss	≤1.5dB @ 7.0～7.3GHz ≤1.0dB @ 7.3～26GHz
Pass Band VSWR	≤1.5:1 @ 7.0～20GHz ≤1.8:1 @ 20～26GHz
Stop Band Attenuation	≥50dB @ DC～5.85GHz
Impedance	50 ohms
Power	≤15W
Surface Finish	Guided Oxygen or Black Paint
Net weight	0.015 KG

Mechanical Specifications

Dimensions	201510mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-55 to +85ºC
Storage Temperature	-55 to +95 ºC

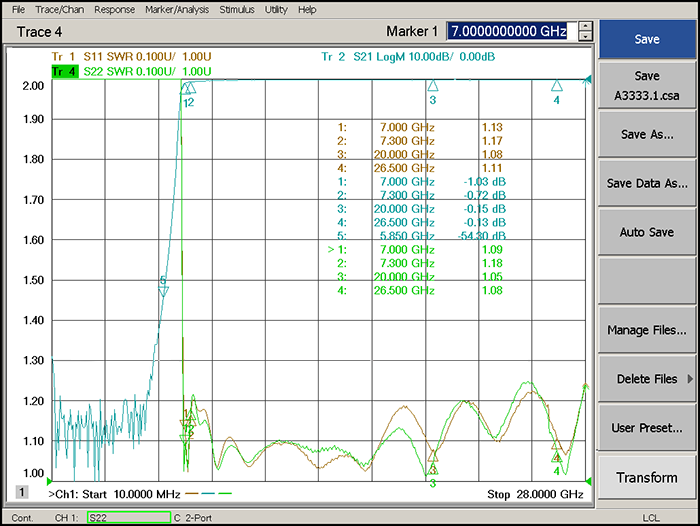

Typical Performance

7.0-26GHz Suspended Stripline High Pass Filter.png

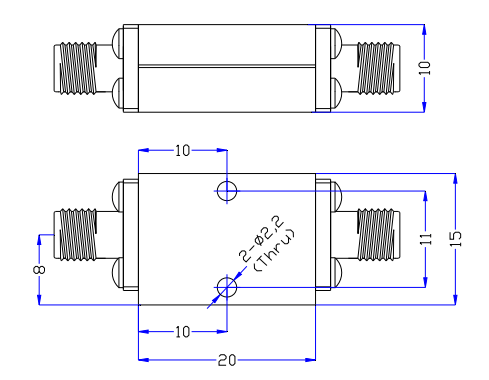

Outline Drawing (unit: mm)
