Low Pass Filter

from DC to 1440MHz

Brand :ENRICHTEK

P/N     :ELP-1E44

MOQ  :1

Low pass filter is a kind of RF filter that passes all frequencies below designed frequency, and reject signals higher than the cutoff frequency.
The frequency of this suspended stripline low pass filter  ELP-1E44 from ENRICHTEK is from DC to 1440 MHz. The maximum handing power is 10 Watt(CW).With a 50 Ohm impedance, the maximum VSWR of this  suspended stripline low pass filter ELP-1E44 is 1.3, the maximum insertion loss is 1 dB and the passband ripple is less than 1 dB.The stop band attenuation of this high  suspended stripline pass filter  ELP-1E44  is larger than 40dB@1800-5500MHz.
ENRICHTEK provides low pass filter design service. Our low pass filter/high pass filter/bandpass filter/band stop filter is customizable to fit your requirements best.

Electrical Specifications

Parameters

Typical Value

Pass Band Frequency

DC1440MHz

Pass Band Insertion Loss

≤1.0dB

Pass Band VSWR

≤1.3:1

Stop Band Attenuation

≥40dB @ 18005500MHz

Impedance

50 ohms

Power Handling

≤10W

Mechanical Specifications


Dimensions

97x37x10(mm)

Connectors

SMA-Female

Surface Finish

Guided Oxygen or Black Paint

Environmental Specifications

Operating Temperature

-45 to +85ºC

Storage Temperature

55 to +95 ºC

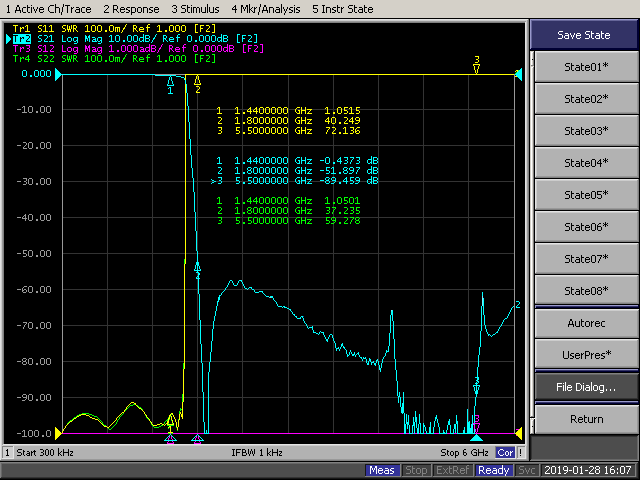

Typical Performance

DC-1440MHz Suspended Stripline Low Pass Filter.png

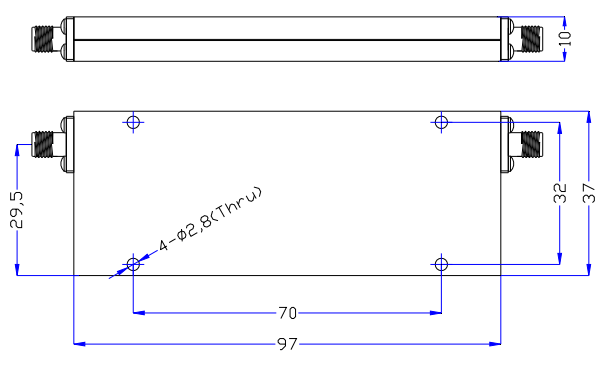

Outline Drawing (unit: mm)
