Low Pass Filter

From DC to 1.0GHz

Brand :ENRICHTEK

P/N     :ELP-1E

MOQ  :1

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.
The operating frequency of this suspended stripline low pass filter ELP-1E from ENRICHTEK is from DC to 1.0 GHz. The maximum handing power is 15 Watt(CW).The passband ripple is less than 1dB and the maximum insertion loss of this low pass filter ELP-1E is 1dB@DC~0.9GHz. The rejection at 1.3-4.2 GHz is larger than 70dB.With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-1E is 1.3.
Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Parameters

Typical Value

Cut Off Frequency

1.0GHz

Pass Band Frequency

DC1.0GHz

Pass Band Insertion Loss

≤1.0dB @ DC0.9GHz

≤1.5dB @ 0.91.0GHz

Pass Band VSWR

≤1.3:1

Stop Band Attenuation

≥70dB @ 1.34.2GHz

Impedance

50 ohms

Power

≤15W

Surface Finish

Guided Oxygen or Black Paint

Net weight

0.06 KG

Mechanical Specifications

Dimensions

82*27*10mm

Connectors

SMA-Female

Environmental Specifications

Operating Temperature

-55 to +85ºC

Storage Temperature

-55 to +95 ºC

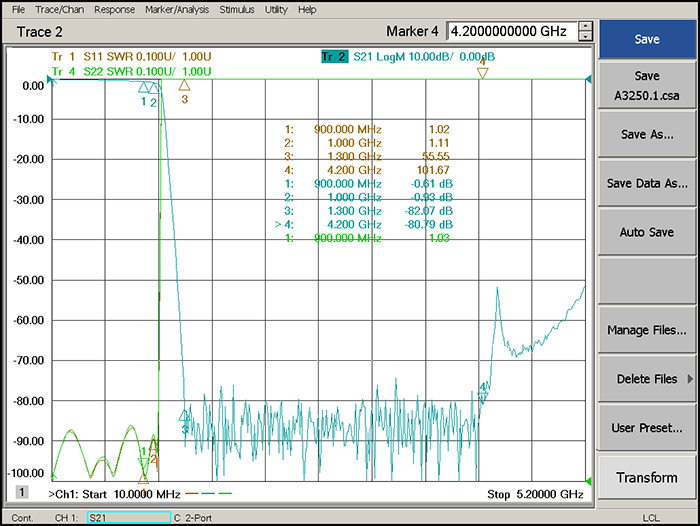

Typical Performance

DC-1.0GHz Suspended Stripline Low Pass Filter.png

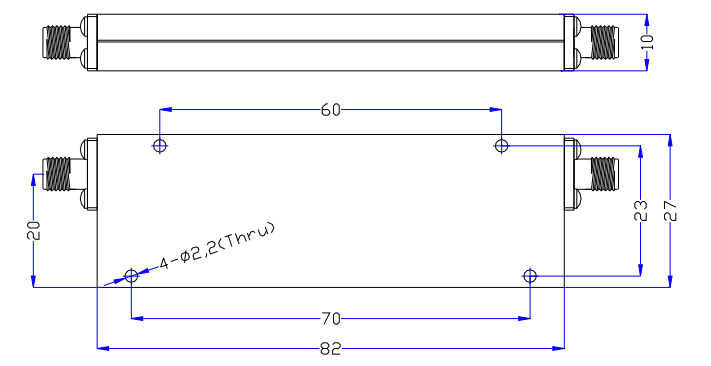

Outline Drawing (unit: mm)
