Biconical antenna

Brand :ENRICHTEK

P/N     :ATBDDC Series

MOQ  :1

Biconical antenna is a vertically polarized omnidirectional antenna, which has similar characteristics to diskcone antenna and has better pattern stability. Its size is about twice as large as diskcone antenna.

Our ATBDBC series biconical antennas have a gain range of 0dBi ~ 2dBi, the VSWR is less than 2.5: 1, and the key frequency range is less than 2: 1. This ATBDBC series biconical antennas can be used for both transmission and reception. Due to its good pattern stability, it is widely used in various fields requiring omnidirectional radiation.

In addition to excellent electrical performance, ATBDBC series antennas have the characteristics of firm structure, light weight, convenient installation. They can work well on the ground, vehicles and aircrafts.

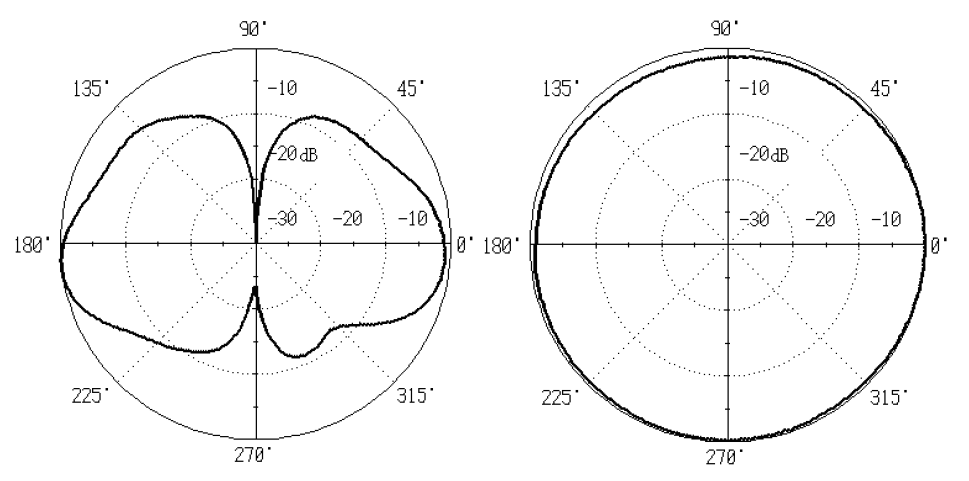

Typical Pattern (ATBDC100300)


1000MHz(E/H)


2000MHz(E/H)

Biconical Antenna Product List

Note: antenna is customizable according to user requirements

P/N

Frequency

(MHz)

VSWR

(Typ.)

Gain

(dBi)

Power

(CW)

Connector

Dimension

(mm)

ATBDBC1040

100~400

2.5:1

0~2

300W

N

Ф1180×800

ATBDBC20300

200~3000

2.5:1

0~2

200W

N

Ф650×400

ATBDBC50300

500~3000

2:1

0~2

100W

N

Ф280×200

ATBDBC100300

1000~3000

2:1

0~2

100W

N

Ф180×120

ATBDBC2001800

2000~18000

2:1

0~2

50W

SMA

Ф123×82

ATBDBC2002650

2000~26500

2:1

0~2

50W

SMA

Ф123×82

ATBDBC3001500

3000~15000

2.5:1

0~2

50W

SMA

Ф65×42

ATBDBC14002650

14000~26500

2.5:1

0~2

50W

SMA

Ф65×42
