Low Pass Filter Operating From DC to 450MHz

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.
The operating frequency of this LC low pass filter ELP-E45 from ENRICHTEK is from DC to 450 MHz.
The passband ripple is less than 1.0dB . The rejection at 900MHz is larger than 70dB.
With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-E15 is 1.5.
Applications
Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.
Customizable
ENRICHTEK provides low pass filter design service. Our low pass filters are customizable to meet customer's requirements best.
Electrical Specifications
Parameters
Typical Value
Frequency Range
DC~450MHz
Insertion Loss
≤1.0dB
VSWR
≤1.5:1
Rejection
≥70dB@ 900MHz
Mechanical Specifications
Dimensions
30*18*8mm
Connectors
SMA-Female
Surface Finish
Nickel Plating [Chemical nickel]
Environmental Specifications
Operating Temperature
-55 to +85ºC
Storage Temperature
-55 to +95 ºC

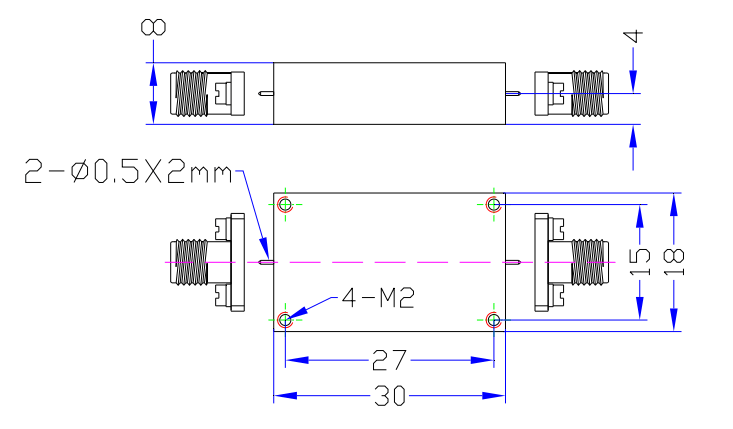

Outline Drawing (unit: mm)
Low Pass Filter Operating From DC to 450MHz
Low Pass Filter  ELP-E45
