Low Pass Filter Operating From DC to 7.0GHz

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.
The operating frequency of this suspended stripline low pass filterlow  ELP-7E from ENRICHTEK is from DC to 7.0 GHz. The maximum handing power is 5 Watt(CW).
The rejection at 7.8GHz-15GHz is larger than 40dB.
With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-7E is 1.6.
Applications
Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.
Customizable
ENRICHTEK provides low pass filter design service. Our low pass filters are customizable to meet customer's requirements best.
Electrical Specifications
Parameters
Typical Value
Frequency Range
DC~7.0GHz
Insertion Loss
≤2.0dB
VSWR
≤1.6:1
Stop Band Rejection
≥40dB @ 7.8~15GHz
Power
5W
Mechanical Specifications
Dimensions
30*22*10mm
Connectors
SMA-Female
Surface Finish
Guide Oxygen or Black Paint
Environmental Specifications
Operating Temperature
-55 to +85ºC
Storage Temperature
-55 to +95 ºC
Typical Performance

Low Pass Filter Operating From DC to 7.0GHz

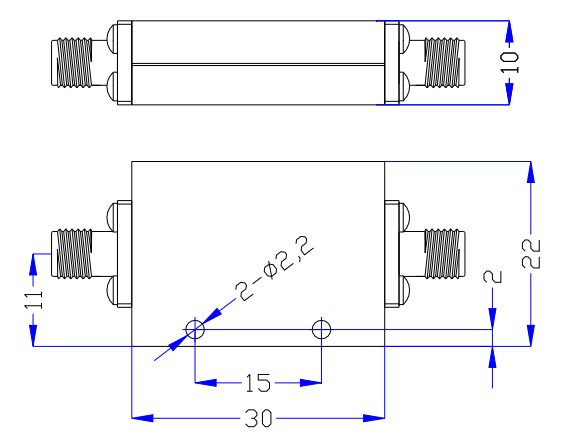

Outline Drawing (unit: mm)
Low Pass Filter Operating From DC to 7.0GHz
 Low Pass Filter ELP-7E
