12 Way Power Divider with SMA Female Connectors From 600MHz to 3000MHz Rate at 10 Watt
12 Way Power Divider with SMA Female Connectors From 600MHz to 3000MHz Rate at 10 Watt
The frequency of this 12 way RF power divider (also known as 12 way RF power splitter) EPD12-E6-3E is from 600MHz to 3000MHz with a 2400MHz bandwidth. The maximum input power is 10 Watt.
This 12 way power divider/power splitter EPD12-E6-3E from ENRICHTEK has a typical insertion loss of 10.8dB. With a 50 Ohm impedance, the maximum input VSWR of this 12 way power divider/power splitter is 1.6, the isolation is greater than 18dB.
Customization Service
ENRICHTEK provides 12 way power divider/power splitter design service, such as changing the frequency, connectors, changing the electrical parameters, or mechanical structure.
Electrical Specifications
|
Description
|
Typical
|
Unit
|
|
Frequency
|
600~3000
|
MHz
|
|
Impedance
|
50
|
Ohms
|
|
Insertion Loss
|
10.8 typ.
13.0 max.
|
dB
|
|
VSWR
|
1.6:1
|
|
|
Isolation
|
≥18
|
dB
|
|
Amplitude Balance
|
0.6
|
dB
|
|
Phase Balance
|
8
|
degrees
|
|
Input Power
|
10
|
Watt
|
Mechanical Specifications
|
Connectors
|
SMA Female
|
Environmental Specifications
|
Operating Temperature
|
-45 to +85ºC
|
|
Storage Temperature
|
-55 to +95 ºC
|

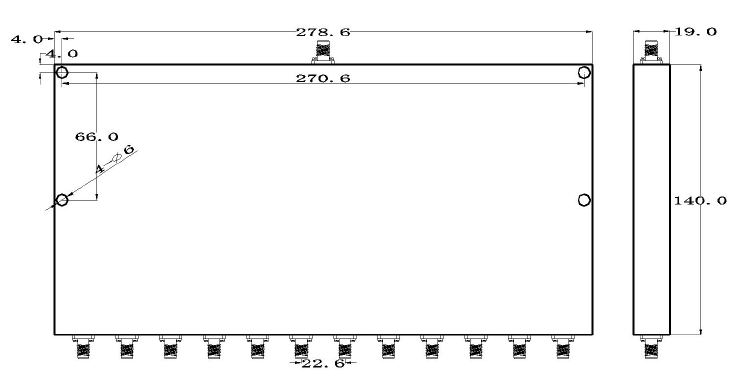

Outline Drawing (Unit: mm)
