ESR Series Semi Rigid RF Cable Assemblies
ESR Series Semi-rigid RF Cable Assemblies
ENRICHTEK’s ESR series semi-rigid RF cable assemblies are bent to the high level of precision. The semi-rigid RF cable assemblies are used for high reliable microwave interconnection between internal modules. ESR series support frequency up to 60GHz. The VSWR is <1.25 when at 40GHz. Phase matching is available upon request.
Customization Service
The length and connectors of the ESR series RF cable assemblies are customizable.
Semi-rigid RF Cable Construction
|
Center Conductor
|
Ag-plated Cu
|
|
Dielectric
|
PTFE
|
|
Outer Conductor
|
Sn-plated Copper/ Albaloy-plated Copper
|

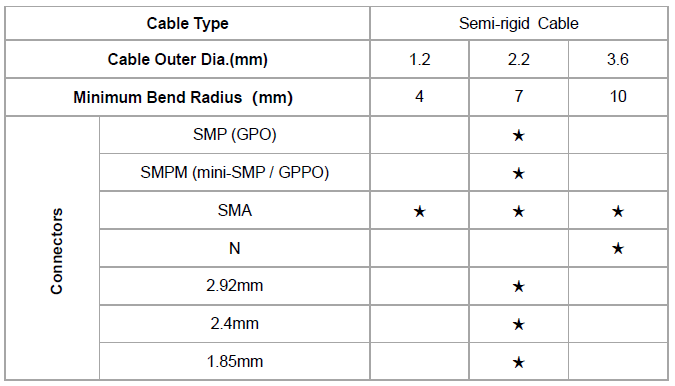

Semi-rigid RF Cable Selection Matrix
